Rotary permanent magnet chuck
Product name: Rotary permanent magnet chuck
Product performance: Rotary permanent magnet chuck is suitable for high precision angle grinding on various surface grinders and dischargers. Rotary spindle has angle calibration and can be used for angle grinding before and after. High strength, body and rotating spindle as a whole. Selection of high-quality magnetic materials, strong suction, small remanence, magnetic distribution uniform. The smoothing accuracy of the magnetic surface remains unchanged when switching on/off. The magnetic force arrangement is only 1.5mm, which can hold smaller parts.

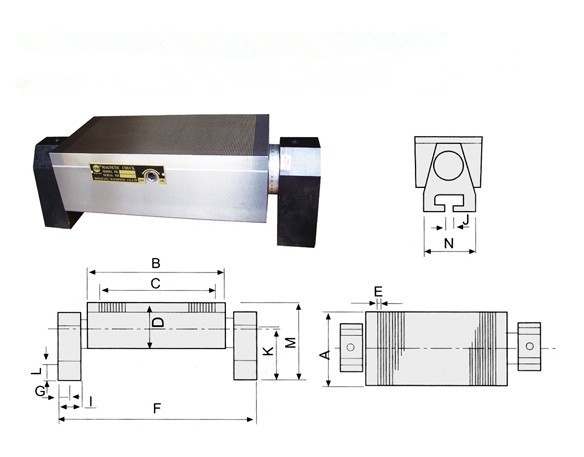

Product specification：
|
202 |
Model |
size(mm) |
(kg) |
|
A |
B |
C |
D |
E |
F |
G |
I |
J |
K |
L |
M |
N |
|
202-1 |
XM42 100*175A |
100 |
175 |
135 |
100 |
1.5(1+0.5) |
292 |
25 |
50 |
14 |
103 |
50 |
163 |
100 |
18.5 |
|
202-2 |
XM42 125*250A |
125 |
250 |
250 |
100 |
1.5(1+0.5) |
370 |
25 |
50 |
14 |
103 |
50 |
163 |
100 |
25 |
|
202-3 |
XM42 150*150A |
150 |
150 |
150 |
100 |
1.5(1+0.5) |
270 |
25 |
50 |
14 |
103 |
50 |
163 |
100 |
21 |
|
202-4 |
XM42 150*300A |
150 |
300 |
300 |
100 |
1.5(1+0.5) |
420 |
25 |
50 |
14 |
103 |
50 |
163 |
100 |
31 |
Suggestions for use: There are two ways of installation (through hole/block). Please choose products according to the way of installation.
More specifications can be customized. |
